FORKLIFTS & TELEHANDLERS

TELEHANDLER 10,000LB 56' REACH


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: JCB

Model: 510-56

Daily: $600.00

Weekly: $2,100.00

Monthly: $5,000.00

Quantity: for a period of
day(s) week(s) month(s)

Additional Information

DESCRIPTION

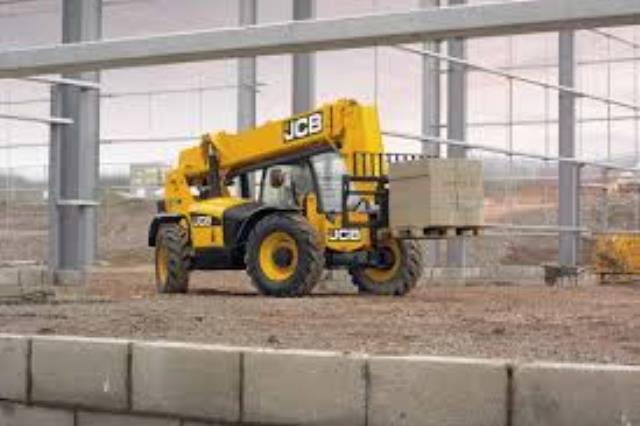

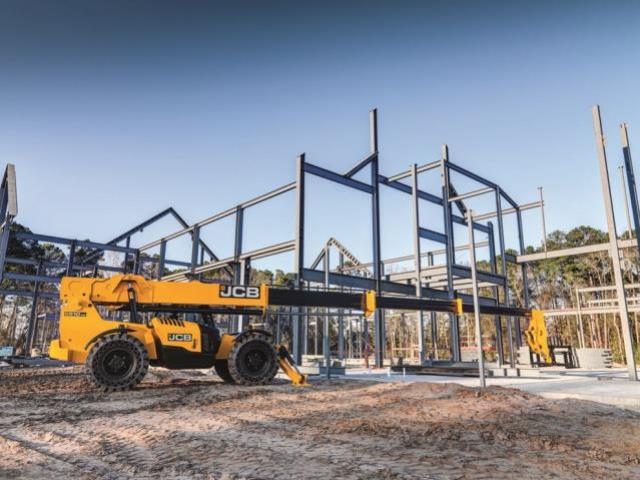

The JCB 510-56 delivers 10,000 lbs of lift capacity at 56 feet of maximum reach the highest capacity-to-reach ratio in the Dynamic Rentals telehandler fleet. With a 672" (56 ft) maximum lift height and 504" (42 ft) maximum reach, it handles heavy precast panels, structural steel, heavy mechanical equipment, and large building material lifts on mid-rise and industrial construction projects across the Lower Mainland. Epicyclic hub axles, 17.5-inch tires, disc parking brakes, and multi-disc service brakes provide the stability and control needed when working near maximum capacity. Available for daily, weekly, or monthly rental from Dynamic Equipment Rentals in North Vancouver and Port Coquitlam.
SPECS
Model: JCB 510-56
Max lift capacity: 10,000 lbs
Max lift height: 672" (56 ft)
Max reach: 504" (42 ft)
Max boom angle: 71
Operating weight: 29,900 lbs
Overall length: 259" | Overall width: 97" | Overall height: 106"
Wheelbase: 124" | Ground clearance: 17.5"
Axles: Epicyclic hub
Tires: 17.5" drive and steer
Brakes: Disc parking / Multi-disc service
Cooling Method: Liquid
Horsepower: 109.0 hp
Fuel Tank Capacity: 35.0 gal
Power Mode: Diesel
Aspiration: Turbocharged
Drive System: 4WD
Max. Travel Speed: 15.5 mph
Transmission: Powershift
FAQ
Q: What is the JCB 510-56 used for?
A: The JCB 510-56 is used for heavy material lifts on large construction sites precast concrete panels, structural steel beams, heavy mechanical equipment, and oversized material bundles that exceed the capacity of smaller telehandlers.
Q: What is the difference between the 8,000 lb and 10,000 lb telehandler?
A: The 10,000 lb JCB 510-56 provides 25% more lift capacity and a longer wheelbase for greater stability at high loads. Choose this model when handling precast panels, heavy steel, or large equipment where the 8,000 lb unit would be at or near its rated limit.
Q: Can this telehandler be rented with the personnel basket or jib attachment?
A: Yes the personnel basket and heavy-duty truss jib are available as separate rentals. Call Dynamic Rentals to confirm attachment compatibility for this specific model.
